20CrMnTiH Parking Gear

Jiangsu Weiying Machine Co. Ltd.
Contact Now

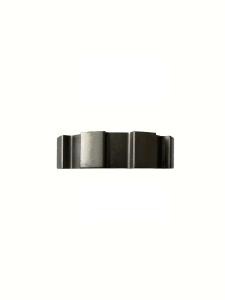

20CrMnTiH Parking Gear

Brand Name : WINNER

Certification : IATF16949

Place of Origin : TAIZHOU-CHINA

MOQ : 5000

Price : CNY+100-400+YUAN

Payment Terms : T/T, MoneyGram

Supply Ability : 1200+SET+DAY

Delivery Time : 5-8 workdays

Packaging Details : According to customer's requirement

modulus : 7.3

number of teeth : 9

tooth depth : 4.75

material : 20CrMnTiH/21NiCrMo5H

materials : low carbon alloy steel

application : P mode in the car

product description : parking gear

gear type : parking tooth+involute internal spline

Contact Now

The parking tooth with module 7.3 has a width of 13, This product is made of low carbon alloy steel. Generally, alloy steel is called alloy steel by adding other alloying elements in addition to iron and carbon. An iron carbon alloy formed by adding one or more alloying elements on the basis of ordinary carbon steel.

Influence on mechanical properties and Tempering Properties of steel The properties of steel depend on the respective properties of iron solid solution and carbide and their relative distribution. The influence of alloying elements on mechanical properties of steel is also related to this.

Alloying elements solidly dissolved in ferrite can enhance strength and hardness, but reduce toughness and plasticity at the same time. Among them, the solution strengthening effect of phosphorus and silicon is the most significant, and silicon has the most serious effect on toughness. A small amount of manganese, chromium or nickel can increase the toughness of ferrite.

modulus 6.1-8.7
number of teeth 8-11
tooth depth 4.25-5.15
tooth width 8-19
weight 0.153KG-0.261KG
material 20CrMnTiH/21NiCrMo5H
appearance circle
gear surface hardness 58-62HRC
tooth line shape involute
application P mode in the car
product description: parking gear
accuracy of gear 7-10
processing module 1-9
gear type parking tooth+involute internal spline
materials low carbon alloy steel
surface treatment carburizing and quenching
processing technic forging+machine work+heat treatment
fabricating machinery mechanical press+CNC Lathe
checkout equipment Klingberg Gear Btesting Center
