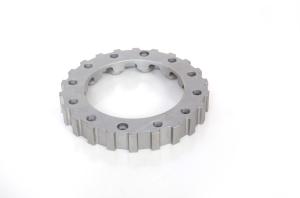

The gear accuracy is 7 when the weight is 0.163kg, The material chosen for this product is 20CrMnTi, which is a kind of carburized carbon steel. Carburized carbon steel is usually low carbon steel with carbon content of 0.17%-0.24%. It is Cr Mn Ti steel in medium hardenability carburized carbon steel. Its hardenability is high. Under the condition of ensuring quenching, it especially has high low temperature impact toughness. 20CrMnTi surface carburizing hardened steel.
Good machinability, small deformation and good fatigue resistance. The main uses are: used for shaft, piston parts and various special parts of automobiles and airplanes.
20CrMnTiH gear steel is used to manufacture important parts such as gear, gear ring, gear shaft, cross head, which bear high speed and heavy load, impact and friction with cross section less than 30mm.
Product specification:
| modulus | 6.1-8.7 |
| number of teeth | 8-11 |
| tooth depth | 4.25-5.15 |
| tooth width | 8-19 |
| weight | 0.153KG-0.261KG |
| material | 20CrMnTiH/21NiCrMo5H |
| appearance | circle |
| gear surface hardness | 58-62HRC |
| tooth line shape | involute |
| application | P mode in the car |
| product description: | parking gear |
| accuracy of gear | 7-10 |
| processing module | 1-9 |
| gear type | parking tooth+involute internal spline |
| materials | low carbon alloy steel |
| surface treatment | carburizing and quenching |
| processing technic | forging+machine work+heat treatment |
| fabricating machinery | mechanical press+CNC Lathe |
| checkout equipment | Klingberg Gear Btesting Center |
,
Related products:
| gear ring |
| involute gear |
| gear tooth profile |
| involute teeth |
| mechanical gear ring |
| involute gear teeth |
| involute tooth |
| involute tooth profile |
| involute gear profile |
| involute gear tooth |
| transmission ring |
FAQ:
Q:What are your packing terms?
A: Generally speaking, we will pack properly according to your requirements.
Q:What are your terms of payment?
A:generally speaking, telegraphic transfer 30% serves as deposit, 70% is before deliver, but specific circumstance, want to seek advice from our business branch, according to different actual situation, differ somewhat.
Q: What are your company's main products?
A: Automotive precision forging products.
