M6.5 Parking Gear 9 Width Internal Spline Involute Gear Profile

Brand Name : WINNER

Certification : IATF16949

Place of Origin : TAIZHOU-CHINA

MOQ : 5000

Price : CNY+100-400+YUAN

Payment Terms : T/T, MoneyGram

Supply Ability : 1200+SET+DAY

Delivery Time : 5-8 workdays

Packaging Details : According to customer's requirement

modulus : 6.1-8.7

number of teeth : 8-11

tooth depth : 4.25-5.15

accuracy of gear : 8

processing module : 2

tooth line shape : involute

gear type : parking tooth+involute internal spline

fabricating machinery : mechanical press+CNC Lathe

Contact Now

The parking tooth with module 6.5 has a width of 9, The processing technology of this product includes forging, machining and heat treatment, among which heat treatment refers to the metal material in solid state, by means of heating, heat preservation and cooling, change the chemical composition and structure of the material surface or inside, to obtain the required performance of a metal hot processing technology.

Vacuum heat treatment furnace method

Because the metal workpiece heating, cooling and other operations, need more than a dozen or even dozens of actions to complete. These actions are carried out inside the vacuum heat treatment furnace, which is inaccessible to the operator, so the automation degree of the vacuum heat treatment furnace is higher.

At the same time, some actions, such as heating and insulation after the end of the metal workpiece quenching process must be six or seven actions and to be completed within 15 seconds. this

Product specification:

modulus 6.1-8.7
number of teeth 8-11
tooth depth 4.25-5.15
tooth width 8-19
weight 0.153KG-0.261KG
material 20CrMnTiH/21NiCrMo5H
appearance circle
gear surface hardness 58-62HRC
tooth line shape involute
application P mode in the car
product description: parking gear
accuracy of gear 7-10
processing module 1-9
gear type parking tooth+involute internal spline
materials low carbon alloy steel
surface treatment carburizing and quenching
processing technic forging+machine work+heat treatment
fabricating machinery mechanical press+CNC Lathe
checkout equipment Klingberg Gear Btesting Center

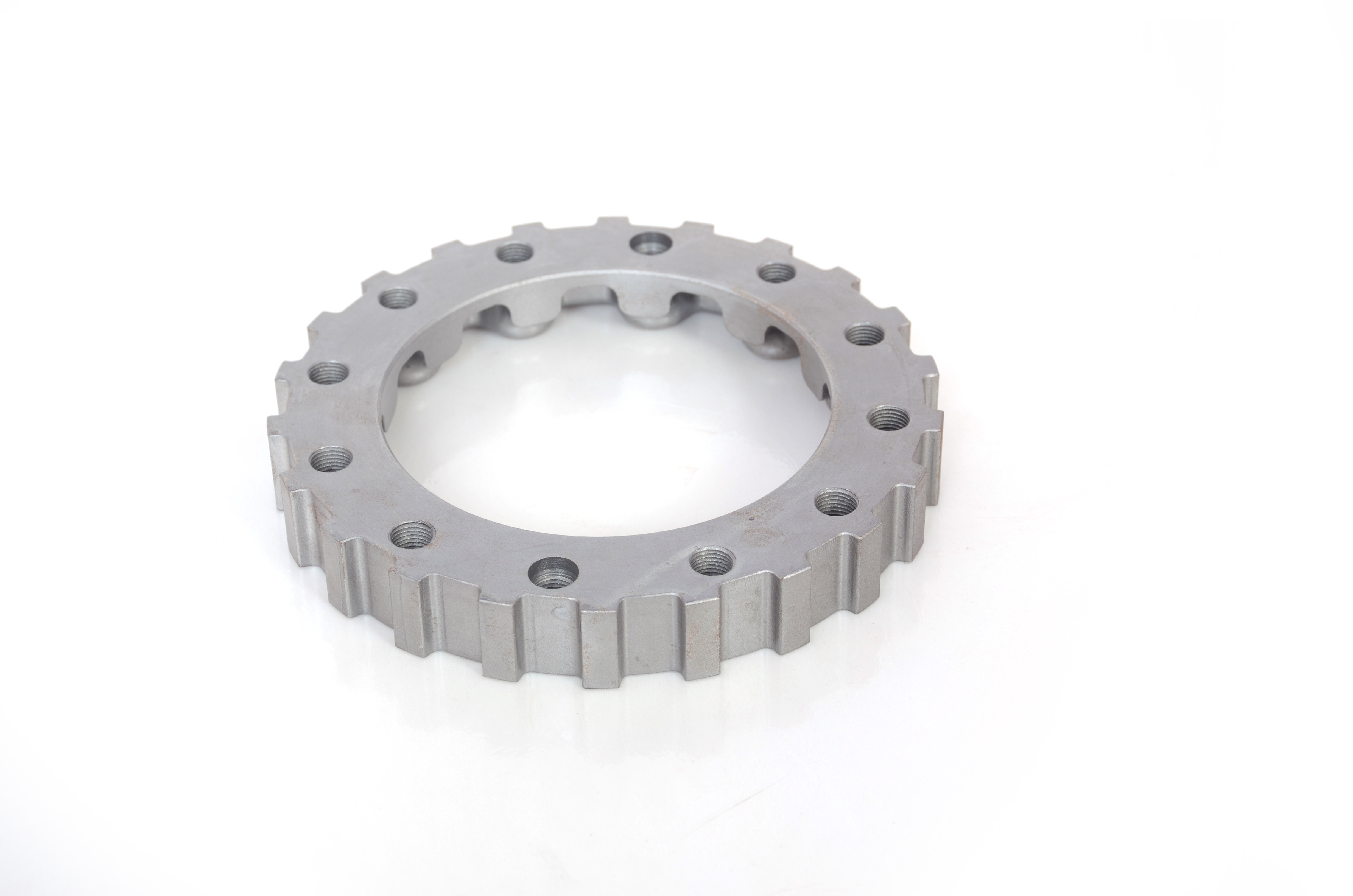

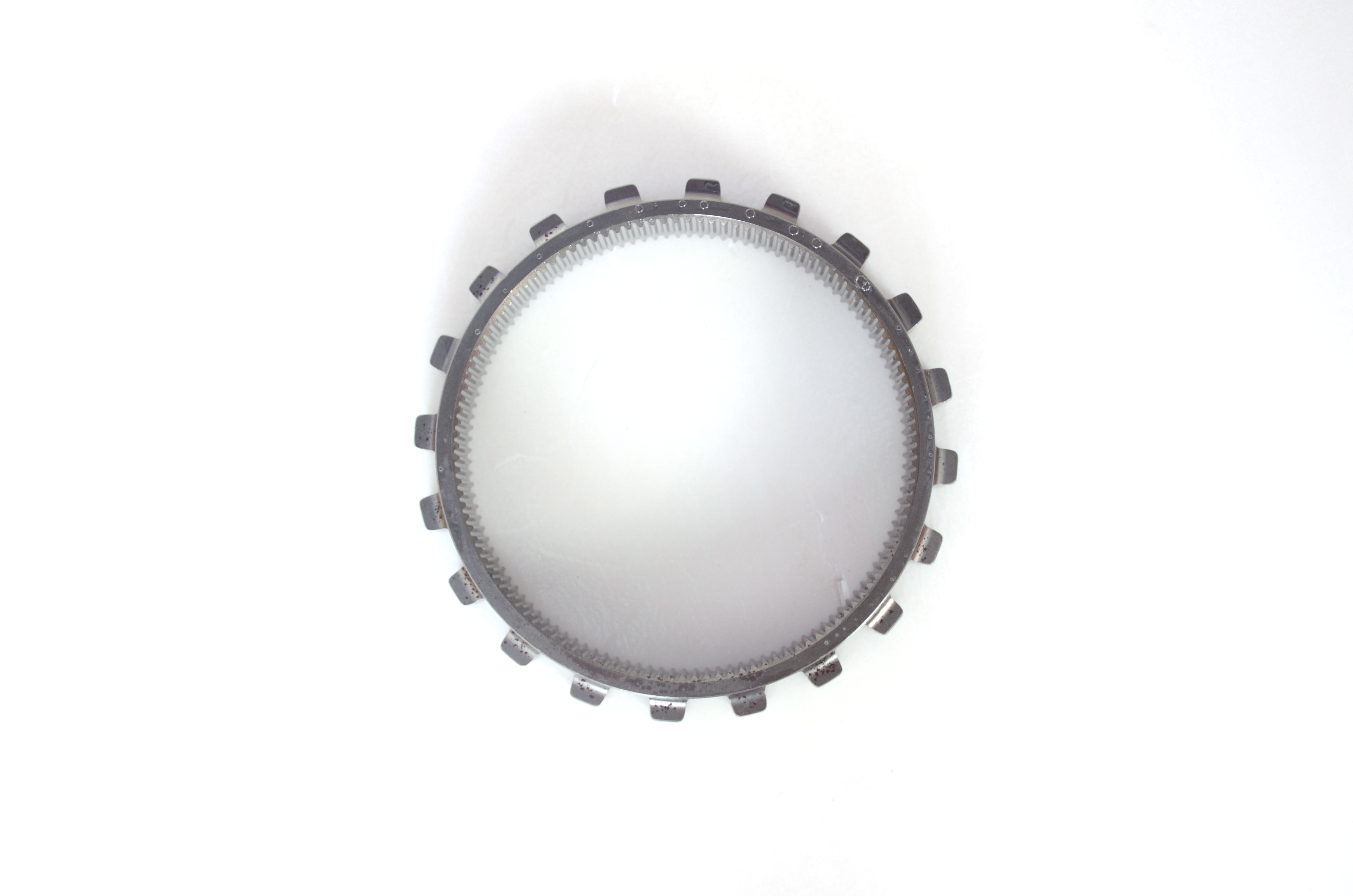

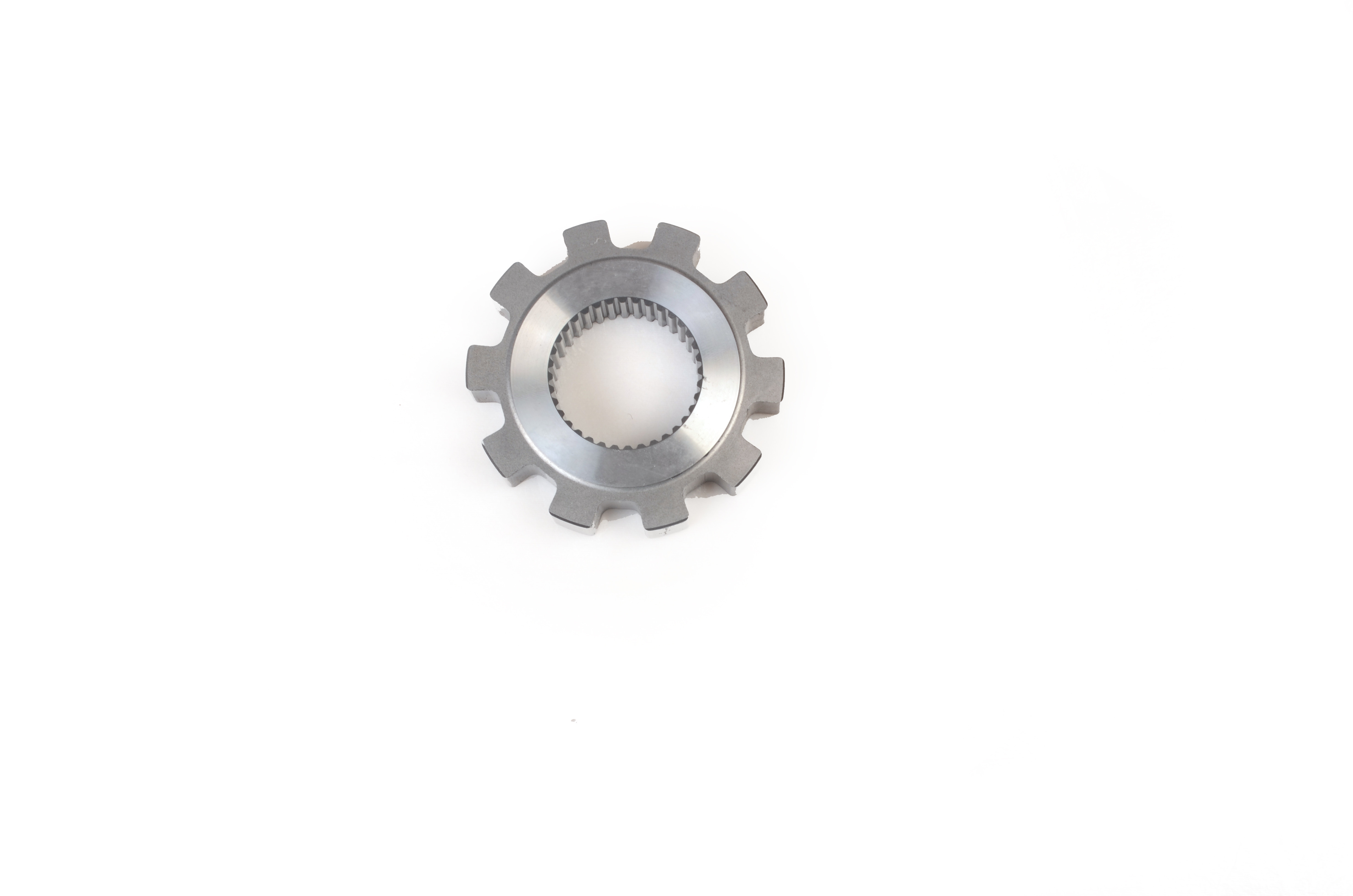

M6.5 Parking Gear 9 Width Internal Spline Involute Gear ProfileM6.5 Parking Gear 9 Width Internal Spline Involute Gear ProfileM6.5 Parking Gear 9 Width Internal Spline Involute Gear Profile

Related products:

gear ring
involute gear
gear tooth profile
involute teeth
mechanical gear ring
involute gear teeth
involute tooth
involute tooth profile
involute gear profile
involute gear tooth
transmission ring

FAQ:

Q:What are your packing terms?

A: Generally speaking, we will pack properly according to your requirements.

Q:What are your terms of payment?

A:generally speaking, telegraphic transfer 30% serves as deposit, 70% is before deliver, but specific circumstance, want to seek advice from our business branch, according to different actual situation, differ somewhat.

Q: What are your company's main products?

A: Automotive precision forging products.
