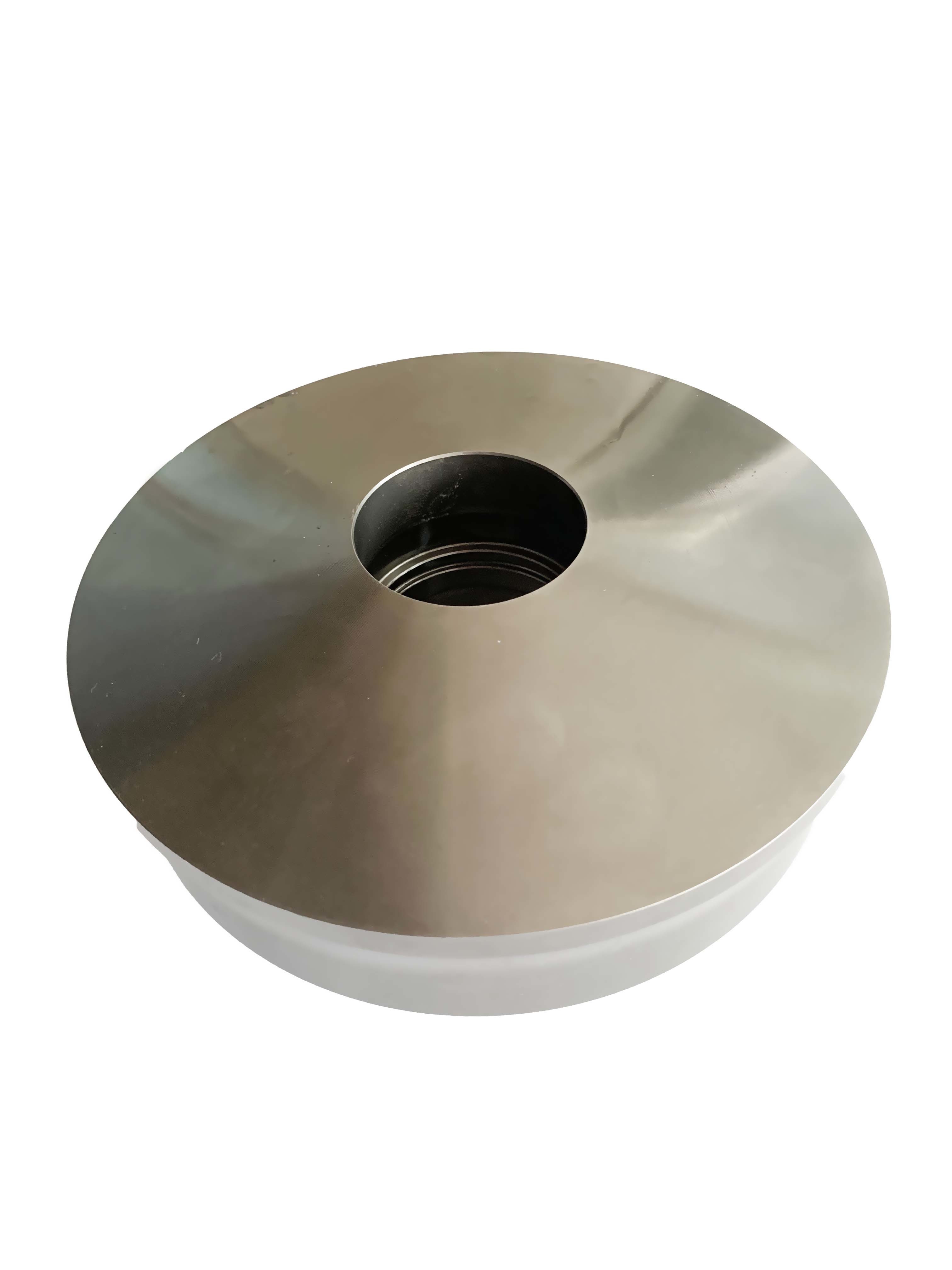

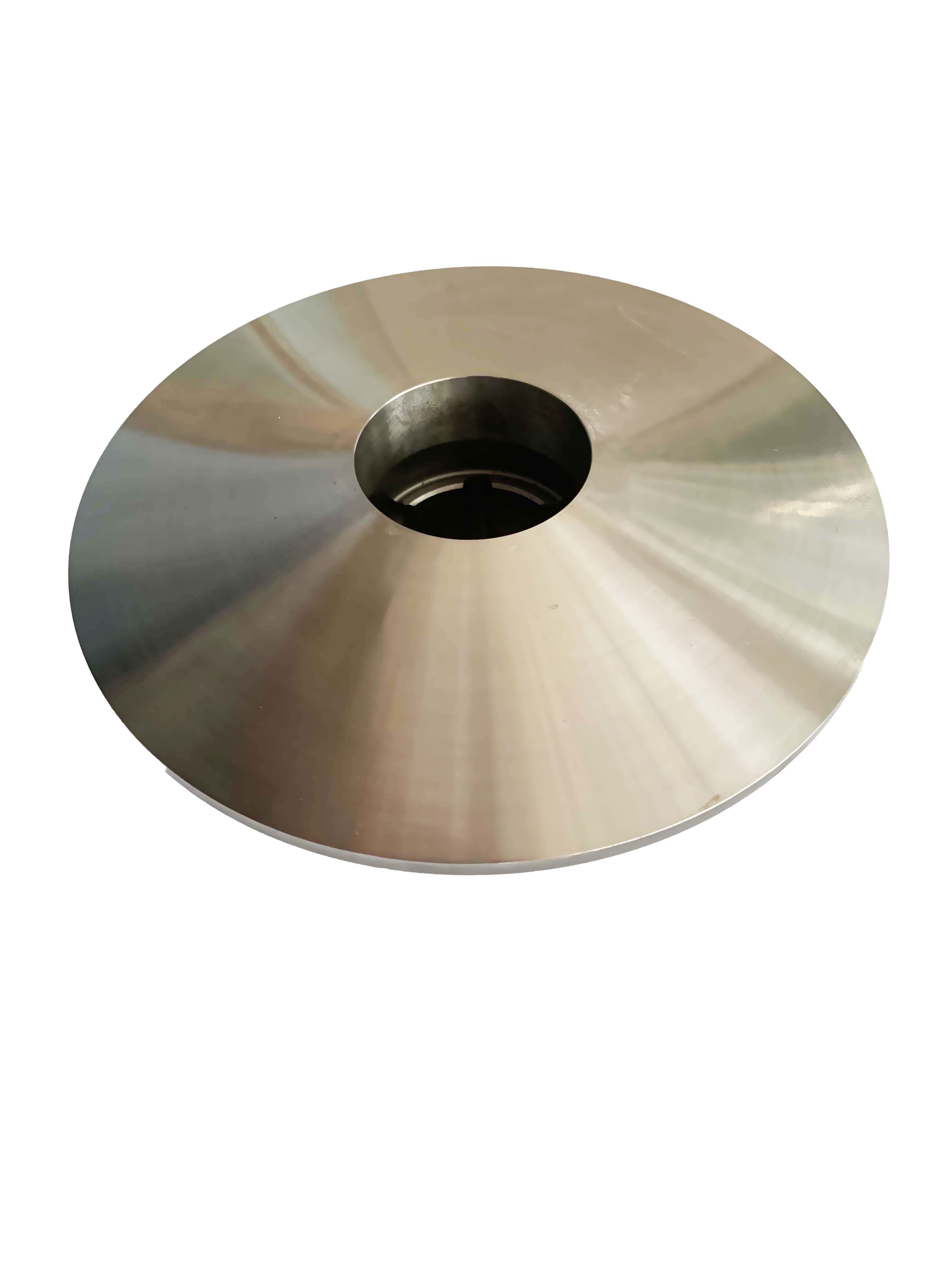

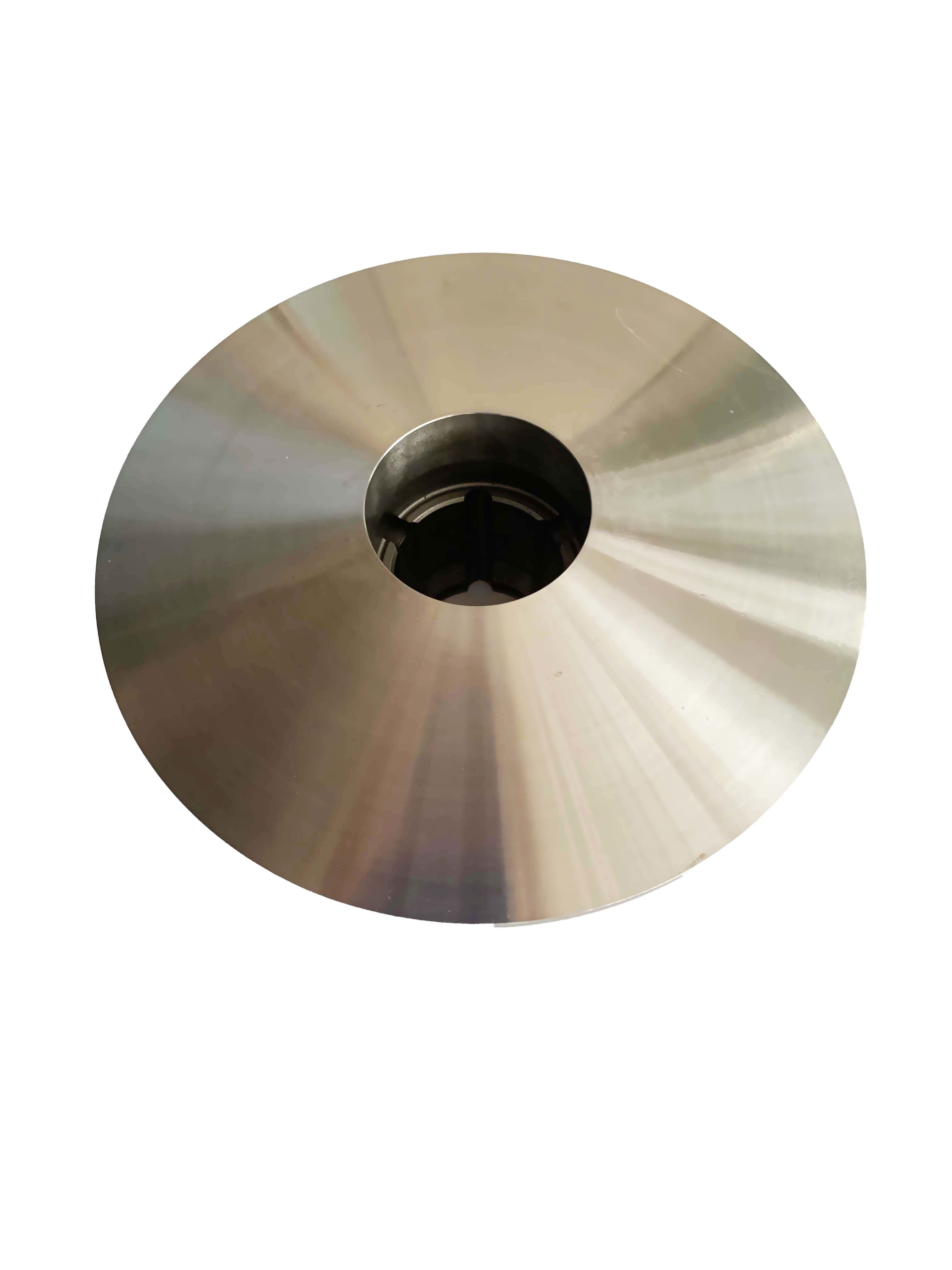

CVT PULLEY SHEAVE, module 3, Teeth 25, The surface of the product will undergo different treatment techniques, surface treatment on the surface of the substrate material artificial formation of a layer of mechanical, physical and chemical properties of the substrate surface technology. The purpose of surface treatment is to meet the requirements of corrosion resistance, wear resistance, decoration or other special functions of the product.
There are two kinds of interpretation of surface treatment in general, one is generalized surface treatment:
Surface treating agent
Including pretreatment, electroplating, coating, chemical oxidation, thermal spraying and other physical and chemical processes; The other is the narrow sense of surface treatment, that is, only including sandblasting, polishing, etc., that is, we often say the pretreatment part. What we say below is mainly surface treatment in the narrow sense.
Product specification:
| boundary dimension | (φ150-φ180)x(60-270) |
| modulus | 1-3 |
| number of teeth | 10-36 |
| tooth depth | 1-8 |
| tooth width | 10-45 |
| weight | 2.5-6kg |
| material | 20CrMoH/20CrMo5 |
| heat treatment | carburizing and quenching |
| gear surface hardness | 58-62HRC |
| application | splined coupling/signal collection/parking |
| accuracy of gear | 7-10 |
| processing module | 1-2 |
| gear type | involute internal spline |
| materials | low carbon alloy steel |
| surface treatment | carburizing and quenching |
| processing technic | forging+machine work+heat treatment |
| fabricating machinery | mechanical press+CNC Lathe+machining center+Rub tooth machine+gear hobbing machine |
| checkout equipment | Klingberg Gear Btesting Center+Zeiss CMM+Mitoyo contourgraph |
Related products:
<
| pulley sheave |
| cvt parts |
| masterdrive sheaves |
| drive sheave |
| adjustable sheave pulley |
| fixed sheave |
| clutch sheave |
| cvt drive pulley |
| cvt transmission pulley |
| drive pulley cvt |
| forging gear |
| gear bearing |
| sheave bearing |
| mechanical component |
| precision mechanical parts |
| basic mechanical parts |
| metal pulley |
| cnc transmission |
| alloy pulley |
| continuously variable transmission |
| cvt transmission components |
| cvt transmission weight |
FAQ:
Q: What are your terms of payment?
A: generally speaking, telegraphic transfer 30% serves as deposit, 70% is before deliver, but specific circumstance, want to seek advice from our business branch, according to different actual situation, differ somewhat.
Q: What's your lead time?
A: Generally speaking, the specific delivery time depends on the item and quantity of your order, depending on the situation.
Q: Can we produce according to the sample?
A: Yes, we will produce according to customers' samples or technical drawings.
